Factory Parts |
Repair Parts for Your Gilson Snowblower |
|
HOME CONTACT US Except where stated this site is in no way affiliated with any of the products or companies mentioned or depicted within except as noted. |
SNOW CANNON Including the following models: 1850, 1850 R, 1851, 1871, 09GN 5139, 09GN 5189, 09GN 5190, 09GN 5190 X, 09GN 5203, 09GN 5238, GIS 7503 A18, GIS 7504 A08, GIS 7504 A97, GIL 35250 A, GIL 35250 B, GIL 35250 C, GIL 35260 A, GIL 35270 A, 55129, 55129 A, 55130, 55185, , 55189, 55190, 55190 A, 55201, 55202, 55203, 55203 A, 55203 B, 55208, 55253, , 55312, 55327, 55328, 55329, 55332, 55354, 55379,55380. Also comparable exports to Canada and Europe.
Some Snow Cannon parts listed on this page are provided by M&D Mower.
Carburetor Kit for B&S powered models: 09GN 5203 , 09GN 5238, GIS 7503 A18, GIL 35260 A, 55203, 55203 A, 55203 B, 55208, 55332, 55354. These models have Briggs & Stratton, 2 Stroke, Model 62032 engine, types 0132 or 0632. Parts lists call for carburetor kit numbers 396787 or 394495. Kit number 394495 covered all applications of these engines. As of December 2022 it was discontinued, but old stock may linger if you search. While carburetor service kits are no longer commercially available, the two most perishable parts, the fuel pump diaphragm and mating gasket are still available as genuine B&S parts. They can be ordered using the following links. Note that there are two versions of each based on the CODE number found on the engine shroud. |
Drive Belts Order a spare while you are at it. Drive Belt for Tecumseh and Briggs and Stratton powered models, Gilson # 207159 (700370)
Tecumseh Engine Powered Models: 09GN 5139, 09GN 5189, 09GN 5190, 09GN 5190 X, GIS 7504 A08, GIS 7504 A97, GIL 35250 A, GIL 35250 B, GIL 35250 C, GIL 35270 A, 55130, 55189, 55190, 55190 A, 55201, 55202, 55312, 55327, 55328, 55329, 55379, 55380 and other unrecorded export models.
Briggs & Stratton Engine Powered Models: 09GN 5203, 09GN 5238, GIS 7503 A18, GIL 35260 A, 55203, 55203 A, 55203 B, 55208, 55332, 55354 and other unrecorded export models.
OMC Engine Powered Models: 1850, 1850 R, 1851, 1871, 55129, 55129 A, 55185, 55253 and other unrecorded export models.
|

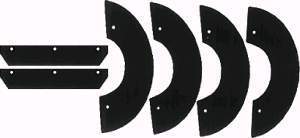

FLIGHTS & PADDLES Includes 2 paddles and 4
flights to replace all of the rubber wear elements on your rotor.
Flights
replace Gilson # 207141, LawnBoy # 700504. Paddles replace Gilson #
207527 (or 207137), LawnBoy #
700371. Hardware is not included. This part applies to all models.
|
SCRAPER BAR Replaces Gilson # 201879, LawnBoy # 700321. This part applies to all models. |
| See this bulletin for fuel mix details. |
|
33632 (740051) | |
|
This idler roller tensions the Snow Cannon drive belt. It is also used to tension the blower belt on the vertical shaft single stage models. This part applies to all models.
They are also used in Gilson rear tine tillers and compact front tine tillers.
For ordering information |
|
|
207070 (740015) | |
|
|
This switch replaces the 2 wire safety key switch # 207070 (LawnBoy/Toro # 740015) . This part applies to all Snow Cannon models. This switch is used in Snow Cannons and the Late Model 5 Speed Gear Drive models.
For ordering information |
|
210219 (700487) | |||
|

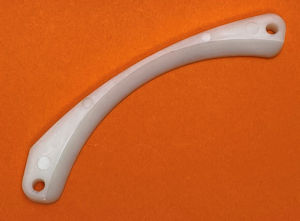

This wear strip is found on late model Gilson and LawnBoy Snow Cannon models 55354, 55379, and 55380
Plus Shipping to US and International destinations
|
| ||
